Model Code
| DSG | -02 | -2 | B | 2 | A |
| Serial Number | Valve Size |
Number of Valve Position |
Mounting type of Spool Spring |
Function of Spool type | Spring position Mark |
|
Yuken type Solenoid directional valve |
02=6
03=10 |
3 |
C:spring centering |
2 3 4 40 60 9 10 12 |
/ |
|
2 |
D:No spring | 2 | / | ||
| B:spring offset |
2 3 8 |
A/B |
| -D24 | -C | -N | -50 | A |
| Coil model | Hand operate type | Electrical wiringform | Design number |
Electromagnet reverse assembly |
|
AC: A110, A220 DC: D24 AC→DC: R110, R220
|
/: with manual push cylinder C: with manual lock button |
/: junction box type N: lamp type |
50 |
L: electromagnet reverse assembly mark |

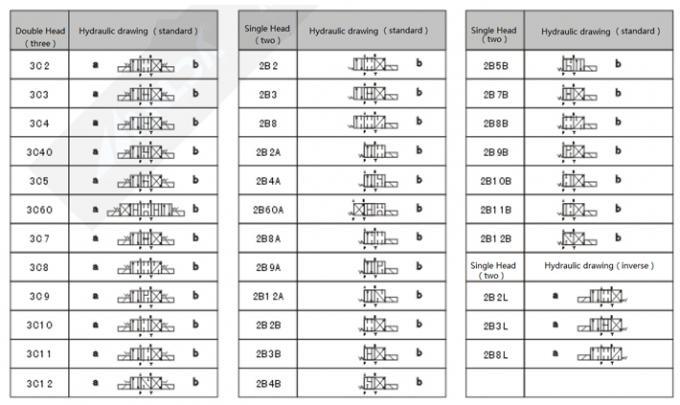

Spool Function Table
Model Number Cross Reference
| VICKERS | YUKEN | REXROTH | DOFLUID | LITAND |
| DG4V-3-2C | DSG-01-3C2 | 4WE6E51 | DFA/B-02-3C2 | SWH-G02-C2 |
| DG4V-3-0C | DSG-01-3C3 | 4WE6H51 | DFA/B-02-3C3 | SWH-G02-C3 |
| DG4V-3-6C | DSG-01-3C4 | 4WE6J51 | DFA/B-02-3C4 | SWH-G02-C4 |
| DG4V-3-8C | DSG-01-3C60 | 4WE6G51 | DFA/B-02-3C60 | SWH-G02-C60 |
| DG4V-3-7C | DSG-01-3C9 | 4WE6M51 | DFA/B-02-3C9 | SWH-G02-C7 |
| DG4V-3-31C | DSG-01-3C10 | 4WE6U51 | DFA/B-02-3C10 | SWH-G02-C8S |
| DG4V-3-3C | DSG-01-3C12 | 4WE6L51 | DFA/B-02-3C12 | SWH-G02-C8 |
| DG4V-3-2A | DSG-01-2B2 | 4WE6D51 | DFA/B-02-2B2 | SWH-G02-B2 |
| DG4V-3-0AC | DSG-01-2B3 | 4WE6C51 | DFA/B-02-2B3 | SWH-G02-B3 |
| DG4V-3-22A | DSG-01-2B8 | 4WE6A51 | DFA/B-02-2B8 | SWH-G02-B20 |
| DG4V-3-2A-L | DSG-01-2B2-L | 4WE6Y51 | DFA/B-02-2B2-L | SWH-G02-B2S |
| DG4V-3-0A-L | DSG-01-2B3-L | DFA/B-02-2B3-L | SWH-G02-D3 | |
| DG4V-3-22A-L | DSG-01-2B8-L | 4WE6B51 | DFA/B-02-2B8-L | SWH-G02-C9SB |
| DG4V-3-2N | DSG-01-2D2 | DFA/B-02-2D2 | SWH-G02-B2 | |
| DG4V-3-2B | DSG-01-2B2B | 4WE6EA51 | DFA/B-02-2B2B | SWH-G02-C2B |
| DG4V-3-2BL | DSG-01-2B2BL | 4WE6EB51 | DFA/B-02-2B2B-L | SWH-G02-C2BS |
| DG4V-3-6B | DSG-01-2B4B | 4WE6JA51 | DFA/B-02-2B4B | SWH-G02-C4B |
| DG4V-3-6BL | DSG-01-2B4BL | 4WE6JB51 | DFA/B-02-2B4B-L | SWH-G02-C4BS |
| DSG-01-3C5 | 4WE6F51 | DFA/B-02-3C5 | SWH-G02-C5 |
| VICKERS | YUKEN | REXROTH | DOFLUID | LITAND |
| DG4V-5-2C | DSG-03-3C2 | 4WE10E51 | DFA/B-03-3C2 | SWH-G03-C2 |
| DG4V-5-0C | DSG-03-3C3 | 4WE10H51 | DFA/B-03-3C3 | SWH-G03-C3 |
| DG4V-5-6C | DSG-03-3C4 | 4WE10J51 | DFA/B-03-3C4 | SWH-G03-C4 |
| DG4V-5-33C | DSG-03-3C40 | 4WE10Q51 | DFA/B-03-3C40 | SWH-G03-C40 |
| DG4V-5-8C | DSG-03-3C60 | 4WE10G51 | DFA/B-03-3C60 | SWH-G03-C60 |
| DG4V-5-7C | DSG-03-3C9 | 4WE10M51 | DFA/B-03-3C9 | SWH-G03-C7 |
| DG4V-5-31C | DSG-03-3C10 | 4WE10U51 | DFA/B-03-3C10 | SWH-G03-C8S |
| DG4V-5-3C | DSG-03-3C12 | 4WE10L51 | DFA/B-03-3C12 | SWH-G03-C8 |
| DG4V-5-2A | DSG-03-2B2 | 4WE10D51 | DFA/B-03-2B2 | SWH-G03-B2 |
| DG4V-5-0AC | DSG-03-2B3 | 4WE10C51 | DFA/B-03-2B3 | SWH-G03-B3 |
| DG4V-5-22A | DSG-03-2B8 | 4WE10A51 | DFA/B-03-2B8 | SWH-G03-B20 |
| DG4V-5-2A-L | DSG-03-2B2-L | 4WE10Y51 | DFA/B-03-2B2-L | SWH-G03-B2S |
| DG4V-5-0A-L | DSG-03-2B3-L | DFA/B-03-2B3-L | SWH-G03-D3 | |
| DG4V-5-22A-L | DSG-03-2B8-L | 4WE10B51 | DFA/B-03-2B8-L | SWH-G03-C9SB |
| DG4V-5-2N | DSG-03-2D2 | DFA/B-03-2D2 | SWH-G03-B2 | |
| DG4V-5-2B | DSG-03-2B2B | 4WE10EA51 | DFA/B-03-2B2B | SWH-G03-C2B |
| DG4V-5-2BL | DSG-03-2B2BL | 4WE10EB51 | DFA/B-03-2B2B-L | SWH-G03-C2BS |
| DG4V-5-6B | DSG-03-2B4B | 4WE10JA51 | DFA/B-03-2B4B | SWH-G03-C4B |
| DG4V-5-6BL | DSG-03-2B4BL | 4WE10JB51 | DFA/B-03-2B4B-L | SWH-G03-C4BS |
